Lesson 2 - Making Light Entities and an
Introduction to 2D Clipping


Note: This tutorial was written for Quake2 mappers. I have also created a Hexen2 version and a Quake version of this same tutorial. Read that if you are doing maps for either of those games. The content is the same; it's just the texture/entities/screenshots that have changed.

Welcome to BSP lesson #2. If you still have your 'Lesson1.map' file from Lesson 1, you can use it in this lesson. Otherwise, just create a rectangular 6-sided with the following dimensions 'X=512, Y=256, Z='128". Be sure to put in an 'info_player_start' entity. If you don't remember how to do this, refer back to Lesson 1. If you want the coordinates to match up with what I mention here, center your room on (0,0) in the Top View and make sure the floor is on 0 in the Z axis.

Okay, as you remember, at the end of lesson 1, we had a room and a starting position, but the map ran pitch dark. That's because if you don't put in any of your own lights, your map will be pitch black in Quake2. So, in this lesson, I'll show you how to make a light fixture and add a light entity to your map.

Fire up BSP and load lesson1.map if you haven't already. Now, before we do anything else, let's save this map under the name 'lesson2.map'. That way we can keep track of what we are doing each lesson. Also, it's good practice when map building to make incremental copies as you go. That way if you get totally screwed up, you can go back to an earlier version without losing your entire map. Believe me it happens to everyone and it will happen to you at some point.

Now if you wanted, you could just put in some invisible light entities and your room would be lit. But, in most cases, it's best to make some type of light fixture (a torch, lamp, etc.), rather than just sticking in an invisible light source. That will make your map seem more realistic, plus it adds detail to an otherwise dull map. There are uses for invisible light sources and we'll talk about those later on, but for now let's create a light fixture. I'll show you how to make a light post that emits light from the top, as if there is a light embedded in the top of the post. It should kinda resemble the military light posts from Quake, if you remember them.

First hit {esc} to make sure no brushes are selected. This is a good habit to repeat just before you create a new brush. That way you don't inadvertantly screw up a brush you've already drawn (again, that's the voice of experience speaking :). Draw a brush in the Top View from (-248,120) to (-224,96). If you don't remember how to draw a brush, refer back to Lesson 1. After you've gotten the brush drawn, switch to one of the side views and make the brush 64 units high. Also, make sure the bottom of your brush is sitting on the floor (0 on the Z axis, in this case).

Got it? Good. Now apply a texture to the brush, using the same techniques described in Lesson 1. I used 'cmet5_1' for my map but you can use whatever you want.

Once you've got the texture applied, switch to the Front View. You might also want to zoom up to 200%. It will make positioning the mouse cursor easier for what we're going to do next. You can change the zoom on a 2D window by clicking on the button in the upper left corner of the window. The default is 75%. After you zoom the screen, you may need to reposition the camera so that your brush is in the center of the window.

Since we don't want the light post to be a rectangle, let's clip it so that it's more of a pyramid shape. To do this, we'll use brush clipping. In BSP, clipping is performed by setting a clip plane and then carving the brush by that clip plane. You can do this in 2D (simple) or 3D (more complicated). Sound hard? Trust me, it's really not. I'm only going to show you 2D clipping in this lesson. 3D clipping is covered in a later lesson, since it's more advanced and takes more practice to get right.

In order to set the clip plane, we need to set two 'clip' points. The clip plane will extend infinitely through these two points and carve any brushes (that are selected) that intersect this plane. To set a point, you simply Shift-Right-Click wherever you want the point to be set. The order in which you set the clip points around your brush affects which portion of the brush gets clipped, so it's important to get them in the right order. Don't worry if you set them backwards, though, because you can flip the clip plane easily enough.

Let's set our first clip point. Position the mouse cursor at (-248,0) in the Front View window and Shift-Right-Click. You'll see a yellow dot appear with the number 1 under it. That's our first point. Now move the cursor to (-240,64) and Shift-Right-Click again. A second clip point has shown up and your brush appears to have been clipped. If the top left corner of your brush has 'greyed-out', you've done it right. If all you see is the top left corner (the rest of your brush is greyed-out), you've set the points in the wrong order. Not to worry. Simply click on the 'Flip' button and the opposite side of the brush will be clipped instead.

Flip Button Flip Button

Once you've gotten the clip plane set correctly, your brush should look like the one pictured below (I turned the grid off for clarity):

Screenshot of Editor
If yours doesn't look like that, re-read the previous paragraph and try setting your clip points again. If it looks okay, you're ready to actually carve your brush. Click the 'Carve' button. The portion of the brush that is shown with grey dotted lines is the portion that will be discarded when you carve it so make sure you have it set properly before carving.

Carve Button Carve Button

When you click on this button, your brush is carved and the clip points disappear. That was so easy, let's do it again! Set another clip plane from (-232,64) to (-224,0) and carve your brush again. That takes care of two sides of our brush. Now switch to the Right View and clip from (96,0) to (104,64) and carve off another side. Last but not least, carve from (112,64) to (120,0) and carve the last side. Now, assuming everything went correctly, you should have a brush which slopes inward on all sides. Switch to the 3-D textured preview and check out your creation.

At this point, we've got the light post created, but we haven't put in the actual light yet. To add a light, we could create a 'Light' entity, like we had to for Quake or Hexen2. If you want to see how to do this read a different version of this tutorial. For Quake2, however, some textures give off light on their own. This changes the way lighting can be done completely from Quake or Hexen2. In fact, it's possible to make an entire map in Quake2 with no light entities whatsoever. Not that I'm recommending it, but it's possible. :)

To see what I mean, deselect your brush and then select 'plite1_3' as a texture. Switch back to the Top view and draw a new brush from (-240,112) to (-232,104). Switch to a side view and set the bottom of the brush at 64 and the top at 84, so it sits directly on top of your post (you may need to change the grid size to 4 to do this). Now, hit 'S' to bring up the Surface window. You'll notice that 'light' is already clicked and that the 'value' box contains 10000. This is the default value for the texture we chose, meaning that this texture will give off light without us having to do anything. Cool, huh?

If you want to change the value, just type a new value in the box and hit the 'apply brush' button to change it. Well, that's it. Now save your map as 'Lesson2.map' and compile it. Run your map in Quake2 (if it isn't already loaded) and you should find yourself standing in a dark room, with the only light coming from your newly-created light post.

(added 11-28-98) Now, if you run your map at this point and your room is still fully bright, then most likely you need to unpack another file from your Quake2 pak file. Using the same program that you unpacked your textures, load up your Quake2 pak0.pak file and extract colormap.pcx. The file should end up in \quake2\baseq2\pics. If you use Winpak, it should end up there by default. After you extract the file, re-compile your map and the room should be properly lit.

Of course, the room is still too dark, so exit Quake2 and return to the Top view window in BSP. Since we've gone to all that trouble to make a light post, let's make a copy of it and put it in another corner. Hit {esc} to deselect all the brushes and then select your light post brush by Shift-Left-Clicking on it. You might notice that when you tried to select your light post, some other brush got selected instead. This is because looking down from the top of your map, there are potentially 4 different brushes you could have selected. These are referred to as 'hit brushes'. We need a way to tell BSP which one of the four we are selecting.

Fortunately, you can cycle through the hit brushes by Shift-Left-Clicking on the brush and holding the mouse button down. As long as you hold the mouse button, BSP will cycle through all potential hit brushes lying under the mouse cursor. Sometimes, when you first start the cycle, more than one brush is selected. If this happens, just let it cycle clear through once and then you can go one at a time. However, if there is an entity brush that is in the cycle, that brush is selected by default and you can't cycle through the others. If this happens, you may have to select your brush in a different view.

Fortunately, in BSP there's an even easier way to select the brush or brushes you want. Find the brushes you want to select in the 3D view and simply click on them (no Shift-key necessary). Each brush you click on gets selected. Clicking on that brush again deselects it. This makes it easy to get just the brush you want without having to cycle through the 'hit' brushes all the time. If you have your 3D window in the upper left corner of your screen, like I showed in Lesson 1, it's easy to do it this way. Just a matter of preference though. Make sure you've got the Light post brush selected and are in the Top view before continuing.

Now that the post has been selected, we also want to copy the Light brush on top, so select that brush by Shift-Left-Clicking on it. Now, hit {Ctrl-C} or select 'Copy' under the Edit menu and hit {Ctrl-V} or select 'Paste' from the Edit menu to paste a new copy of your Light post into the map. The new brushes you just pasted are still selected, so drag them down to the lower left hand corner of your room and position them 8 units from the South wall and 8 units from the West wall. Switch to the Front view and make sure your new brush is sitting on the floor and that's all there is to it.

Let's go ahead and put another light post in each of the corners on the East side of the map too. Copy and paste them just like you did the last one.

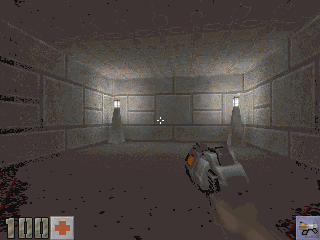

Now save and recompile your map again and see the results of your work. It's definitely looking better now isn't it? It's still a little dark in the center, but we'll take care of that in the next lesson. Here is a screenshot of how your level should look so far:

Game screenshot

That's all there is to adding lights to a map. Well, our map is definitely getting better, so let's save it and take a break. We'll do some more lighting and make a monster for our map in lesson 3. Feel free to play around on your own with making light fixtures, but keep your Lesson2.map the way it is. We'll be building on it in later lessons. Until then, have fun!
